A Pune warehouse cannot choose a reach truck from its headline capacity or a brochure’s narrow-aisle claim. You need to match the truck to the rack geometry, floor, pallet, duty cycle and service arrangement, then verify that the quoted configuration is actually available and performs at the highest storage position.
Key takeaways
- Match the truck to aisle width, floor condition, rack height and retrieval frequency.
- Measure aisle clearance, rack depth, door height and turning space before requesting quotes.
- Specify rated capacity at maximum lift, not only the truck’s headline capacity.
- Confirm local parts, technician response and acceptance-test conditions before purchase.
Choose the right truck for the work and the warehouse
A reach truck earns its place in an indoor warehouse with flat floors, pallet racks, frequent vertical retrieval and rack dimensions that match its aisle requirement. It is not a general-purpose dock or yard vehicle.
For retrieval, the operator approaches squarely, stops with the mast aligned to the pallet and applies the parking brake. After levelling the forks, the operator enters the pallet openings, lifts the load clear, retracts the reach mechanism before travelling, then reverses with controlled steering and clear visibility.
For put-away, the operator raises the load below the target beam and positions the truck before reaching forward. The pallet is set down evenly, the mechanism retracts fully, the forks lower and the operator exits without striking the rack.
| Option | Best fit | Limitation |
|---|---|---|
| Counterbalance forklift | Docks, trailers and outdoor yards | Less suited to narrow rack aisles |
| Stacker | Pedestrian operation, short lifts and lower-intensity storage | Lower speed, reach and lift capability |
| Order picker | Person-on-board case picking | Not designed for pallet retrieval |
| Turret truck | Very narrow aisles and specialised high-level pallet handling | Higher specialisation and rack dependence |
A reach truck for warehouse in Pune is a poor choice for rough outdoor yards, wet or uneven floors, long horizontal transport, direct truck loading or non-fork attachments. Use a counterbalance forklift or specialised equipment for those zones.
Measure the Pune site before asking for a quotation
Collect these measurements before contacting a reach truck supplier in Pune:
- Maximum rack height and highest pallet beam
- Building clear height, including lights, sprinklers and door lintels
- Rack upright depth and aisle width
- End-of-aisle turning clearance
- Pallet length, width and load-centre distance
- Floor load rating and permitted wheel load
- Joint condition and floor levelness
Draw one rack row to scale. Show pallet overhang, upright protection, the truck body, fork length and the complete turning envelope, then compare that drawing with the supplier’s specified aisle method.
A brochure aisle figure is incomplete without its assumptions.
| Method | What to verify on your drawing | Supplier detail to request |
|---|---|---|
| VNA | Straight travel, guided operation and clearance at the rack | VNA aisle width, guidance system and truck dimensions |
| Straddle | Right-angle stacking path, pallet overhang and turning clearance | Right-angle stacking aisle for your stated pallet size |
| Articulated | Operating aisle, articulation swing and rack-end clearance | Operating aisle, articulation limits and load-overhang assumptions |
Ask whether the quoted figure assumes VNA, straddle or articulated operation, a stated pallet size, no load overhang, and a particular mast or fork length. Do not accept one aisle number without these conditions.
Trace the route from the charging area to racks, dock, staging lanes and fire exits. A high-lift truck needs a floor that stays level under wheel loads; failed joints, ramps or an open wet dock can disqualify a standard reach truck even when the rack aisle fits.
Specify capacity, mast and reach mechanism at the highest lift
Select capacity at the top beam, not from the truck’s headline rating. Before you buy a reach truck in Pune, request a residual-capacity chart for the actual lift height, load-centre distance, mast configuration, fork length and every attachment.
A 1.6-tonne or 2.0-tonne rating is not the top-beam capacity: residual capacity falls as lift height and load centre increase. Side-shift, clamps and other attachments add weight and move the centre forward.
| Mechanism | Extension and stability | Visibility and maintenance | Double-deep suitability |
|---|---|---|---|
| Single-reach | Shorter extension; stable for standard single-deep storage | Simpler access and fewer moving parts | Not suitable where the pallet must pass behind another |
| Pantograph | Longer forward extension; requires sound pallets and rack support | More moving parts, tighter inspection and maintenance access | Suitable when the rack design, pallet condition and aisle calculations support double-deep storage |
Specify the mast height, fork length, attachment options, battery voltage and capacity, charger, cabin and cold-store package. A pantograph does not remove the need to calculate aisle width, load centre and rack clearances.
Lead-acid batteries need scheduled charging, cooling time, ventilation and controlled electrolyte handling. Lithium-ion batteries support opportunity charging but require compatible truck electronics, charger and battery-management controls. Check that the selected package matches your shifts and charging area.
Verify Pune availability, service coverage and the real purchase option
“ In stock” means the complete truck is available, not merely a base model. Before you buy reach truck in Pune, require physical confirmation of the exact mast height, fork length, battery voltage and capacity, charger, side-shift attachment, cabin and cold-store package.
Ask for the serial number or build status, missing-component lead time, commissioning date and warranty scope.
Make local support part of the quotation. Ask for:
- Named service location and technician coverage for your warehouse
- Response-time commitment, escalation contact and preventive-maintenance schedule
- Common spare-parts stock, plus battery and charger support
- Capacity plate, operator manual, maintenance schedule, battery and charger documents, inspection requirements and conformity information matching the supplied serial number
A reach truck supplier in Pune that cannot identify these details has not proved availability. A warehouse reach truck manufacturer in Pune should provide evidence, not just an ex-showroom price. Aguatech Engineers Pvt.ltd. is one supplier a Pune buyer can question against this checklist; compare the answers and documents, not the brand name alone.
| Option | Compare against | Best fit |
|---|---|---|
| Purchase | Full ownership; budget for battery replacement, charger, tyres, mast rollers, forks, maintenance, downtime and training | Stable, multi-shift use |
| Lease | Fixed-term commitment; check maintenance, end-of-term and damage clauses | Predictable utilisation |
| Rental | Higher flexibility; confirm truck configuration and replacement support | Short projects or uncertain demand |
| Refurbished | Lower entry price; inspect battery health, rollers, forks, warranty and service history | Lower shifts where downtime is manageable |
Judge the choice by shift pattern and downtime risk, not price alone.
Related product

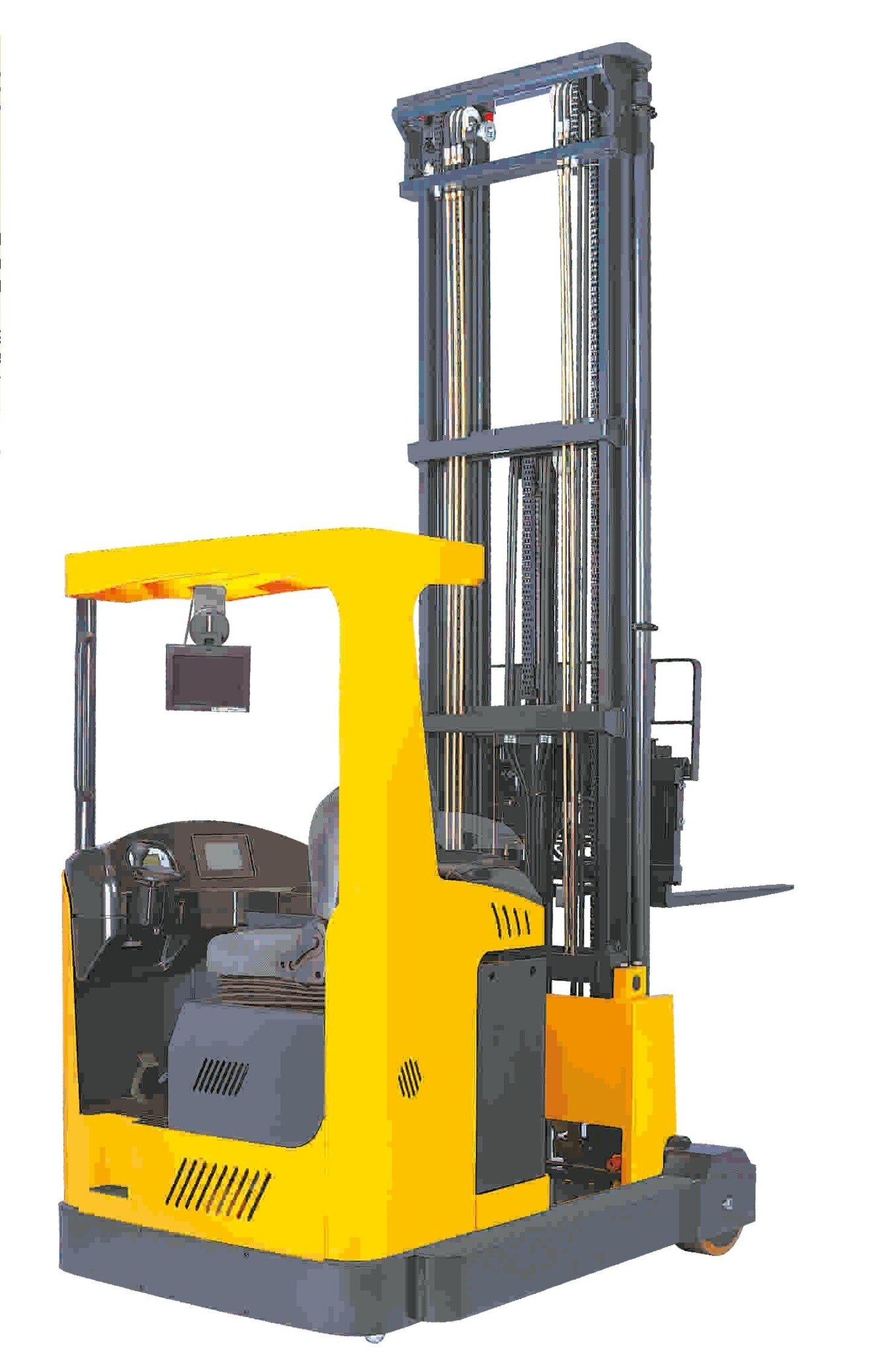

 | Narrow Aisle Reach Trucks A narrow aisle reach truck is an electric warehouse vehicle designed for high-density storage, operating in aisle widths often less than 12 feet,... View product → |
Use an acceptance test before putting the truck into service
Confirm a reach truck for warehouse in Pune through a witnessed acceptance test, not a showroom demonstration. Use your actual pallet and production load on the real floor route, through the actual aisles, turning points and rack locations.
1. Test put-away and retrieval at every required rack beam height, including the highest position. Use the least favourable load centre and the attachment fitted for production. Record loaded travel speed, lift and lower cycle time, reach and retract control, steering clearance, mast visibility and braking.
2. Check battery endurance during representative work, then record charger recovery time and any charging faults. A low-level pallet or unloaded truck proves neither residual capacity nor productivity at the top beam.
3. Verify that the capacity plate matches the truck’s serial number, mast, forks, attachment and configuration. Request the residual-capacity chart for the actual lift height and load centre.
4. Collect the operator manual, maintenance schedule, battery and charger documents, inspection requirements and conformity information from the warehouse reach truck manufacturer in Pune.
5. Train operators on pre-use checks, load-centre limits, rack-contact prevention, charging and pedestrian separation. Record every defect, corrective-action date and handover sign-off before declaring the truck operational. A supplier claiming availability must correct gaps before acceptance.
Frequently asked questions
How do you choose a reach truck for a Pune warehouse?
Match the truck to the work and building: check indoor floor condition, aisle width, rack height, pallet dimensions, retrieval frequency and available charging arrangements. A reach truck is not a general-purpose vehicle for outdoor yards or dock work.
What should you measure before requesting a reach truck quotation?
Measure clear aisle width, rack depth, rack beam height, highest storage level, pallet dimensions, door and dock clearances, floor condition and turning space. Record obstructions such as sprinklers, columns, lights and low beams.
What capacity and mast details should you specify?
State the pallet load, load-centre distance, highest lift height, mast type, collapsed mast height, free lift requirement and reach mechanism. Ask for the rated capacity at the highest lift and your stated load centre, rather than relying on the headline capacity.
How can you verify a reach truck supplier in Pune before buying?
Ask for written availability, delivery scope, warranty terms, spare-parts support, technician coverage, preventive-maintenance arrangements and battery or charger details. Confirm the supplier can support your site after installation.
What should a reach truck acceptance test include?
Test travel, steering, braking, horn, lights, mast lifting and lowering, reach and fork functions, rated-load handling, maximum-height operation, charging equipment and safety devices. Record defects and required corrections before placing the truck into service.
